Hydraulic Operated Turntable on Hydraulic Scissor Lift Table for Painting Workshop

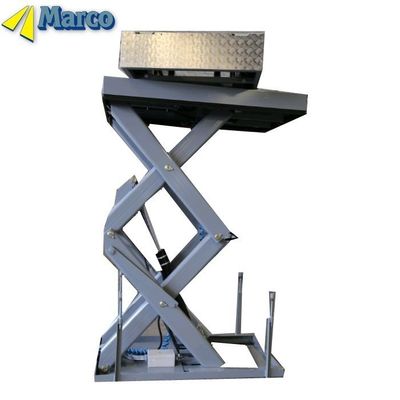

Large Image : Hydraulic Operated Turntable on Hydraulic Scissor Lift Table for Painting Workshop

Product Details:

Certification:	CE, ISO 9001

Contact Now

Hydraulic Operated Turntable on Hydraulic Scissor Lift Table for Painting Workshop

Description

Model NO.:	M3-020190-D2/2H	Product Name:	Hydraulic Operated Turntable On Hydraulic Scissor
Capacity:	2000kg	Lift Stroke:	1900mm
Close Height:	700mm	Transport Package:	Wooden Pallet
Specification:	1600*1000mm	Trademark:	Marco
Origin:	Ningbo	HS Code:	8428909090
Supply Ability:	1200pieces/Year	Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Scissor Lift	Carrying Capacity:	Special Weight Level
Moves:	Stationary	Driven Type:	Hydraulic
Running Mode:	Stationary	Customization:	Available \| Customized Request

Hydraulic Operated Turntable on Hydraulic Scissor Lift Table for the Painting Workshop

Product Description
Hydraulic Operated Turntable on Hydraulic Scissor Lift Table for the Painting Workshop

Mechanical data
Capacity	2000 kg
Lift stroke	1900 mm
Lifting time	25 s
Closed height	700 mm

Other
At the Volvo factory in Flen Sweden, products such as remanufactured engines, transmissions and hydraulic products is repainted before packing and shipping.
The items to be painted are mounted on trolleys and rolled on rails into a paint shop where they are handled on a lifting table.
The top of the lift table is equipped with a hydraulic operated turntable which gives the painter easier access to paint the object on all sides.

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
