M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock

Name: M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock
Brand: test-Inquiry Me Now, Get The Price List.
Availability: InStock

All Products

Customized Lift Tables
(76)

Loading Dock Tables
(3)

I'm Online Chat Now

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock

Large Image : M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock

Product Details:

Certification:	GS, CE, ISO 9001

Contact Now

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock

Description

Model NO.:	M6.5-100270-D22HK	Lifting Height:	2700mm
Lifting Time:	60s	Transport Package:	Wooden Pallet And Steel Pallet, Wooden Case
Specification:	3000X3000mm	Trademark:	Marco
Origin:	China	HS Code:	84289090
Supply Ability:	1000	Warranty:	12 Months
Lift Mechanism:	Scissor Lift	Carrying Capacity:	2000kg
Moves:	Stationary	Driven Type:	Hydraulic
Running Mode:	Stationary	Customization:	Available \| Customized Request

Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor.
Different from other type of lift table, Loading dock table has standard factors as below:
Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame, two paint process with thickness 120um.

Model No.	M6.5-100270-D22HK	Capacity	10000kg
Platform size	3000X3000mm	Base Frame	3000x3000mm
Min. Height	1100mm	Lifting Height	2700mm
Model Type	stationary	Lift Time	60s
Color	Grey/green/ blue/others	Product name	refer to product
Specifications	Customizable	Application	material handling
Power Voltage	380V 50Hz	Control Voltage	24V DC
Delivery Time	1 month	Package	exported case
Trademark	Marco	HS Code	84289090
Orgin	Made In China	Production Capacity	100/month
Certificate	ISO9001, CE, ISO3834,	Design standard	EN1570-1-2011

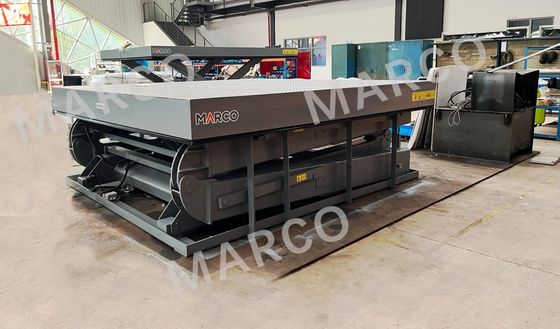

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 3

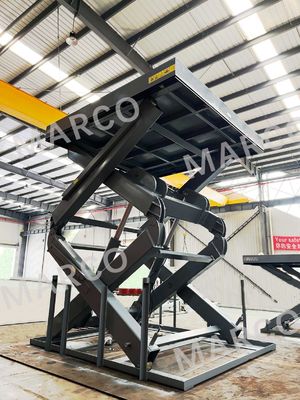

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 4

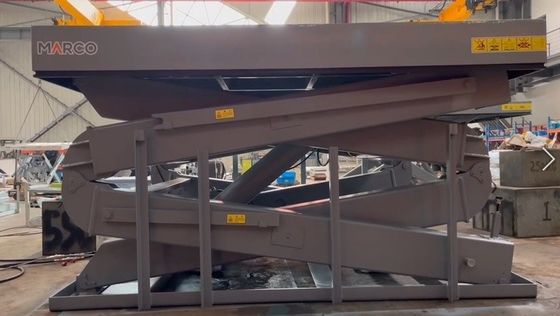

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 5

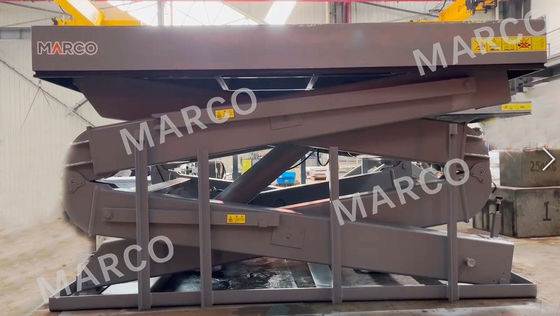

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 6

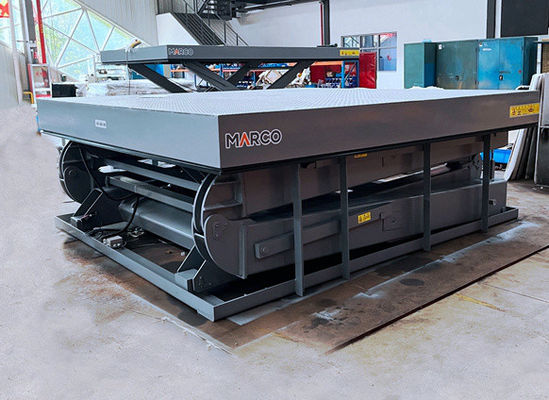

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock 7

Contact Details

test-Inquiry Me Now, Get The Price List.

Contact Person: Ioopled

Tel: +8618812345801

Fax: 86-010-78237838-221
