Heavy Duty Stationary Hydraulic Scissor Lift Platform for Customized Configurations

Large Image : Heavy Duty Stationary Hydraulic Scissor Lift Platform for Customized Configurations

Product Details:

Certification:	CE, ISO 9001

Contact Now

Heavy Duty Stationary Hydraulic Scissor Lift Platform for Customized Configurations

Description

Model NO.:	M2-015100-D2B	Product Name:	Heavy Duty Stationary Hydraulic Scissor Lift Table
Capacity:	1500kg	Lift Stroke:	1000mm
Closed Height:	230mm	Transport Package:	Wooden Pallet
Trademark:	Marco	Origin:	Ningbo
HS Code:	8428909090	Supply Ability:	1200pieces/Year
Application:	Workshop Crane, Warehouse Crane, Building Crane	Lift Mechanism:	Scissor Lift
Carrying Capacity:	Special Weight Level	Moves:	Stationary
Driven Type:	Hydraulic	Running Mode:	Stationary
Customization:	Available \| Customized Request

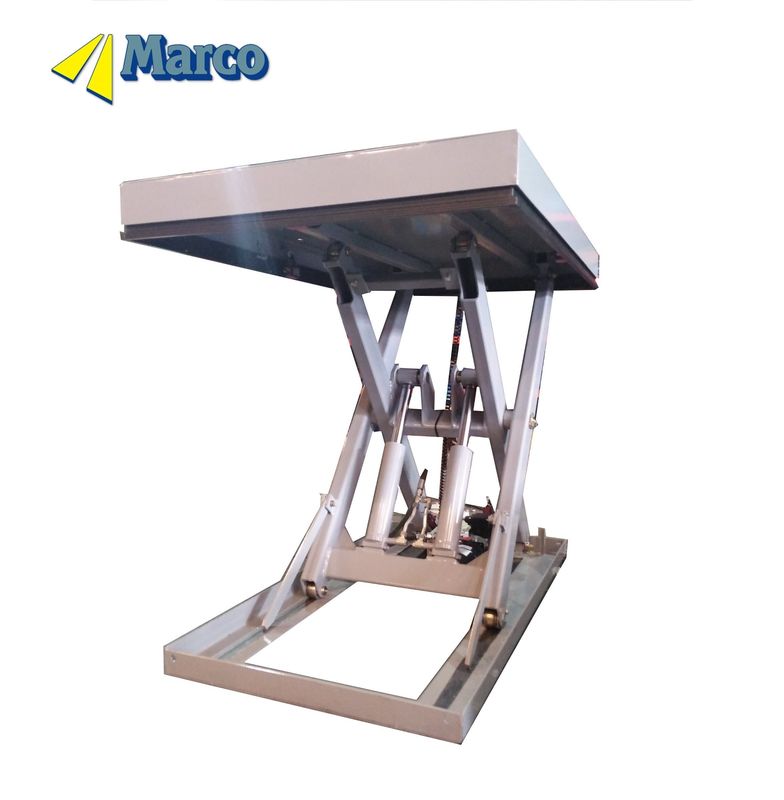

Marco Heavy Duty Stationary Hydraulic Scissor Lift Platform

Product Description

Heavy Duty Stationary Hydraulic Scissor Lift Platform

SPECIFICATION
Capacity (Kg):	1500	Rated current (A):	2,4
Stroke (mm):	1000	Control voltage (V):	24 AC
Closed height (mm):	230	Power pack location:	INT
Platform length (mm):	1000	Protection class:	IP55
Platform width (mm):	1500	Hydraulic oil:	K2
Lifting time (s):	30	Surface treatment:	ISO 32
Output (kW):	0,98	Colour:	RAL 7046
Power supply (V):	3x400 AC	Lift category:	3
Frequency (Hz):	50	Declaration:	IIA

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
